Introduction

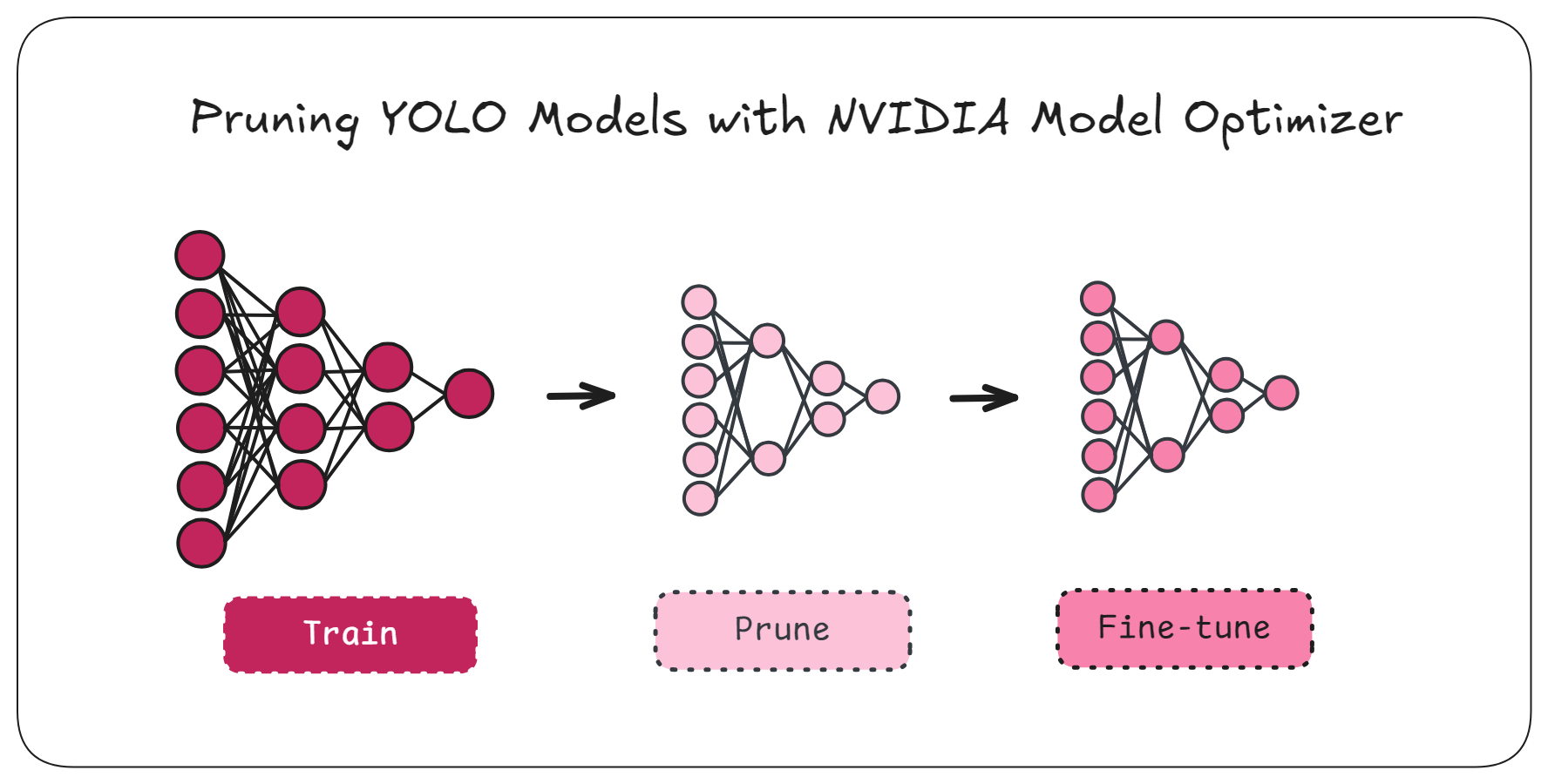

NVIDIA Model Optimizer (ModelOpt) is NVIDIA’s unified toolkit for model optimization. It reduces the code changes needed to apply advanced optimization techniques by transparently wrapping the original model, preserving its attributes and behavior while enabling optimizations behind the scenes. In this guide, we will use ModelOpt to prune and fine-tune the Ultralytics YOLOv8m model and show how simple the process is. The Colab notebook with the full code can be accessed by clicking the “Open in Colab” badge above.
Modifying Model Saving and Loading Mechanism
One hurdle with using ModelOpt is that the wrapped model can’t be pickled. This is problematic because Ultralytics relies on pickling the entire model object when saving. To resolve this, I created a custom branch that simplifies saving and loading models optimized with ModelOpt, which you can install as follows:
pip install nvidia-modelopt git+https://github.com/ultralytics/ultralytics@qat-nvidiaIn this branch, I have modified the save_model() method of BaseTrainer to save the model’s state_dict, YAML config and the ModelOpt config instead of pickling the whole model:
@@ -572,12 +581,26 @@ class BaseTrainer:
# Serialize ckpt to a byte buffer once (faster than repeated torch.save() calls)
buffer = io.BytesIO()
+ model = deepcopy(unwrap_model(self.ema.ema))
+ extras = {}
+ if hasattr(model, "_modelopt_state"):
+ import modelopt.torch.opt as mto
+
+ extras = { # model can't be pickled; saving state_dict
+ "modelopt_state": mto.modelopt_state(model),
+ "state_dict": model.state_dict(),
+ "model_class": model.__class__,
+ "yaml": model.yaml,
+ "names": model.names,
+ "nc": model.nc,
+ }
+
torch.save(
{
"epoch": self.epoch,
"best_fitness": self.best_fitness,
"model": None, # resume and final checkpoints derive from EMA
- "ema": deepcopy(unwrap_model(self.ema.ema)).half(),
+ "ema": None if extras else model.half(),
"updates": self.ema.updates,
"optimizer": convert_optimizer_state_dict_to_fp16(deepcopy(self.optimizer.state_dict())),
"scaler": self.scaler.state_dict(),
@@ -594,6 +617,7 @@ class BaseTrainer:
},
"license": "AGPL-3.0 (https://ultralytics.com/license)",
"docs": "https://docs.ultralytics.com",
+ **extras,
},
buffer,
)
This allows us to then rebuild the model using the YAML and restore the state dict and ModelOpt config in the load_checkpoint() function:
@@ -1500,7 +1501,22 @@ def load_checkpoint(weight, device=None, inplace=True, fuse=False):
"""
ckpt, weight = torch_safe_load(weight) # load ckpt
args = {**DEFAULT_CFG_DICT, **(ckpt.get("train_args", {}))} # combine model and default args, preferring model args
- model = (ckpt.get("ema") or ckpt["model"]).float() # FP32 model
+ model = ckpt.get("ema") or ckpt["model"]
+
+ if "modelopt_state" in ckpt: # ModelOpt model
+ import modelopt.torch.opt as mto
+
+ # rebuild from YAML
+ model = ckpt["model_class"](ckpt["yaml"], verbose=False)
+ model.names = ckpt["names"]
+ model.nc = ckpt["nc"]
+ model.yaml = ckpt["yaml"]
+ # restore model and ModelOpt config
+ with torch.no_grad():
+ mto.restore_from_modelopt_state(model, ckpt["modelopt_state"])
+ model.load_state_dict(ckpt["state_dict"])
+
+ model = model.float()
# Model compatibility updates
model.args = args # attach args to model
Creating the Trainer
To apply pruning using ModelOpt, we create a custom trainer class that inherits from the original trainer and overrides _setup_train() to prune the model before training begins. This way, training fine-tunes the already pruned model.
class PrunedTrainer(model.task_map[model.task]["trainer"]):
def _setup_train(self):
"""Modified setup model that adds pruning."""
from ultralytics.utils import LOGGER
from ultralytics.utils.torch_utils import ModelEMA
import torch, math
super()._setup_train()
def collect_func(batch):
return self.preprocess_batch(batch)["img"]
def score_func(model):
model.eval()
self.validator.args.save = False
self.validator.args.plots = False
self.validator.args.verbose = False
self.validator.is_coco = False
metrics = self.validator(model=model)
self.validator.args.save = self.args.save
self.validator.args.plots = self.args.plots
self.validator.args.verbose = self.args.verbose
return metrics["fitness"]
prune_constraints = {"flops": "66%"} # prune to 66% of original FLOPs
self.model.is_fused = lambda: True # disable fusing
self.model, prune_res = mtp.prune(
model=self.model,
mode="fastnas",
constraints=prune_constraints,
dummy_input=torch.randn(1, 3, self.args.imgsz, self.args.imgsz).to(self.device),
config={
"score_func": score_func, # scoring function
"checkpoint": "modelopt_fastnas_search_checkpoint.pth", # saves checkpoint during subnet search
"data_loader": self.train_loader, # training dataloader
"collect_func": collect_func, # preprocessing function
"max_iter_data_loader": 20, # 50 is recommended, but requires more RAM
},
)
self.model.to(self.device)
self.ema = ModelEMA(self.model) # wrap EMA
# recreate optimizer and scheduler
weight_decay = self.args.weight_decay * self.batch_size * self.accumulate / self.args.nbs
iterations = math.ceil(len(self.train_loader.dataset) / max(self.batch_size, self.args.nbs)) * self.epochs
self.optimizer = self.build_optimizer(
model=self.model,
name=self.args.optimizer,
lr=self.args.lr0,
momentum=self.args.momentum,
decay=weight_decay,
iterations=iterations,
)
self._setup_scheduler()
LOGGER.info("Applied pruning")Here, score_func evaluates model fitness during pruning, and collect_func preprocesses each batch. Fusing is disabled since it interferes with subnet search. The key line is prune_constraints = {"flops": "66%"}, which defines the pruning target relative to original FLOPs. After pruning, the trainer swaps in the pruned model and rebuilds the optimizer and scheduler.
Training can now be launched with the PrunedTrainer:
results = model.train(data="coco128.yaml", trainer=PrunedTrainer, epochs=50)This example fine-tunes the pruned model for 50 epochs on the smaller COCO128 dataset as demonstration. In practice, you should use your actual dataset and a higher epoch count, closer to the original training, for better results. During training, the output logs will show if your constraints can be met:
Profiling Results
┏━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Constraint ┃ min ┃ centroid ┃ max ┃ max/min ratio ┃
┡━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ flops │ 17.97G │ 25.99G │ 39.47G │ 2.20 │
│ params │ 11.61M │ 17.63M │ 25.87M │ 2.23 │
└──────────────┴──────────────┴──────────────┴──────────────┴───────────────┘
Constraints Evaluation
┏━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━┓
┃ ┃ ┃ Satisfiable ┃
┃ Constraint ┃ Upper Bound ┃ Upper Bound ┃
┡━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━┩
│ flops │ 26.05G │ True │
└──────────────┴──────────────┴──────────────┘If your target is below the min shown above, pruning will fail. In this case, the minimum achievable FLOPs is 45.5% of the maximum. NVIDIA recommends choosing a constraint near the centroid, here about 66%.
Pruning Results
After training, loading the pruned model and running model.info() confirms the FLOPs are reduced to 66%:
>>> pruned_model = YOLO("runs/detect/train/weights/best.pt")
>>> pruned_model.info()
Model summary: 169 layers, 16,369,472 parameters, 16,369,472 gradients, 52.3 GFLOPsThe original YOLOv8m FLOPs were:
YOLOv8m summary: 169 layers, 25,902,640 parameters, 0 gradients, 79.3 GFLOPsThe pruned model is also smaller: 62.7MB vs. 99MB (37% smaller). To test the speed, I converted the models to TensorRT FP16 engines and ran validation on COCO128. The original model had 6.4ms inference time vs. 5.4ms for the pruned model on an NVIDIA T4. It is not a significant reduction, but still noticeable because in terms of FPS, inference with pruned model is almost higher by 30FPS.
Conclusion
In this guide, we used NVIDIA Model Optimizer to prune the YOLOv8m model to 66% of its original FLOPs and reduced model size by 37%, with a slight boost in inference speed. Note that to load the .pt files from this training, you need to either use the custom branch described in the beginning, or export it to a different format. To learn more about ModelOpt’s prune function and the available configurations, refer to ModelOpt Pruning Docs and GitHub examples.
Thanks for reading.
